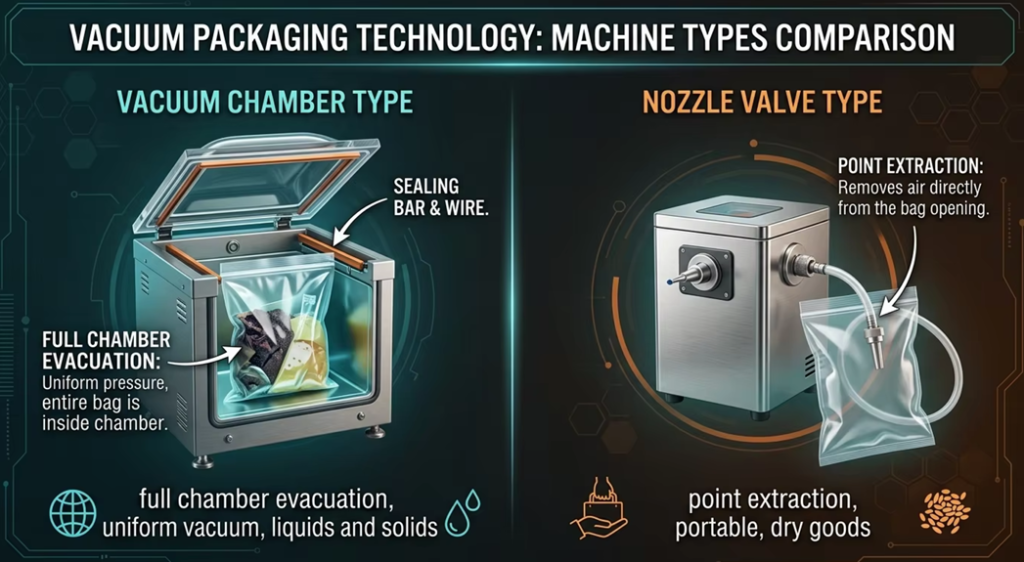

Vacuum Chamber Machines vs Nozzle Valve Machines:Understanding the Port Design Difference

Beyond the chamber vs. external distinction, there is a further subdivision within external vacuum machines based on how the
vacuum connection is made to the bag: integrated nozzle (snorkel) vs valve port (nozzle valve) designs.

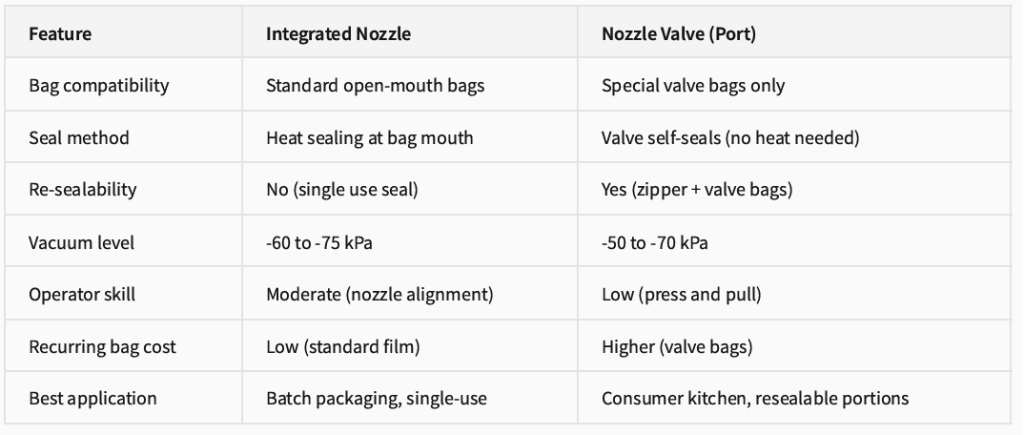

Integrated Nozzle Design: A rigid or semi-rigid suction tube protrudes from the machine front. The operator manually inserts
this nozzle into the open bag mouth, holds it in place, triggers the cycle, and the machine seals around the nozzle before
retracting it. This is the most common consumer and semi-pro design.
Nozzle Valve (Port) Design: Instead of an insertable nozzle, the machine has a recessed port or fitting on its surface. Special
vacuum-valve bags — which have a one-way check valve built into the bag film — are pressed against this port. The pump
evacuates through the valve, which then self-seals when the bag is removed. No heat sealing is needed if the bag uses a zipper
closure plus valve system.

YGPACK’s Recommendation: For commercial and food production environments, chamber machines outperform both nozzle
variants on vacuum depth, bag cost, and throughput. Nozzle valve designs are most appropriate for consumer home use or
retail display packaging where resealability is a sales feature.
